HRB-2400 2600 2800 Folder And Gluer Machine For Corrugated Cardboards

HRB-2400 2600 2800 GLUING MACHINE FOR CORRUGATED CARDBOARD

• The vacuum suction feeding system is good at adapting the curved paperboard
• Siemens touch screen automatic adjustment feeding size. Write sheet size into screen, One touch auto change feeding unit.
• Equipped with high quality electromagnetic clutch brake system, in order to control the feeding unit independently, which is good at reducing waste when changing order and improving the output precision.
• Gear drive much better than chain..
• Wall board thickness 40mm, more heavy and stable

• The glue quantity is controlled by imported high quality and stability motor, which is low noise
• Computer change folder and gluer unit automatic with one touch
• The gluing roll is made of stainless steel, which is easy for cleaning, the gluing is even and saves its volume.
• The transmission belt of folding unit is made of imported wear proof rubber belt, guarantee a long life time and makes the cardboard folding precisely.
• The folding unit equipped with re-creasing and orthotic devices, the height of creasing wheel is adjustable in order to adapt different thickness of cardboard.
• The re-creasing device is able to re-crease the cardboard to reach a good creasing if the first creasing is not good.

• Correct part of the native characteristic, has a unique device, the most advanced coaxial is not synchronized, from each according to his ability, good rectifying. With double speed correction device, make the carton eliminate scissors mouth, good shape, size control.
• Adopt PLC programmable controller and touch screen, digital controls. Response rapid, accurate and reliable, easy to operate.
• Count and launch adopts pneumatic method, reliable, accurate and fast.
• Pressing output using suspension conveying device, can accommodate more than 200 carton, the carton can be under pressure for a long time. It not only ensure the cartons sticky mouth bonding strength, and effectively improve the compressive degree of the carton, the carton appearance more beautiful.

※Technological parameter

carton folding and gluing machine

carton folder gluer machine

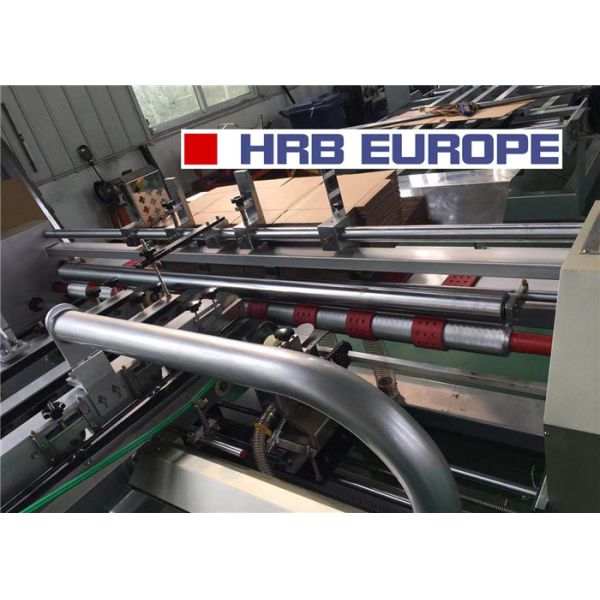

HRB-2400 2600 2800 Folder And Gluer Machine For Corrugated Cardboards Images
